Catalog
Benefits
- Affordable initial investment
- High throughput vs. competitive 3D printing technologies
- Industrial-grade durability
- Print and use same day
- Low total cost of operations
- Application flexibility
- Efficient design iteration
- Six Sigma quality and repeatability
Main Features
- Non-contact membrane Figure 4 technology
- Printable Build Volume (W x D x H):124.8 x 70.2 x 196 mm (4.9 x 2.8 x 7.7 in)
- Industry-leading 3D Sprint software for file preparation and production
- Cloud connectivity for predictive and prompt service with 3D Connect capability.
- Production-grade materials
- Compact printer footprint
- Manual material feed
- Separate, manual post-curing unit, required
Applications
- Replacement of traditional molding and cast urethane processes
- Rapid functional prototyping and fast concept models
- Investment casting patterns for jewelry
- End-use durable plastic parts
- Short run production of plastic articles
- Jigs and fixtures
- Rapid tooling -molds and master patterns
- Elastomeric parts prototypes of grommets, seals, hoses, weather stripping, tubes, gaskets, spacers and other vibration dampening components
- Medical applications requiring biocompatibility and/or thermal resistance

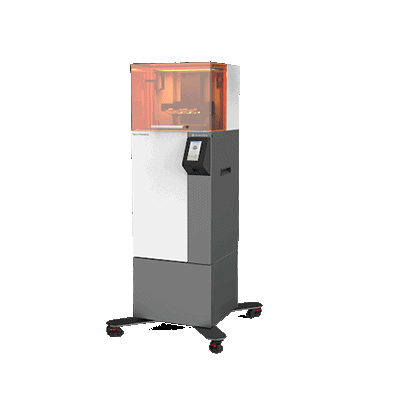

FIGURE 4 STANDALONE Printer Tech Specs (English)
Affordability
Part of 3D Systems scalable, fully integrated Figure 4 technology platform, Figure 4 Standalone is an affordable and versatile solution for low volume production, and same-day prototyping for fast design iteration and verification, offering speed, quality, and accuracy with industrial-grade durability, service, and support. With a compact and easy-to-use design, Figure 4 Standalone delivers industrial-grade durability at an affordable price and low total cost of operations.
Versatility
Quick and easy material changeover allows for functional prototyping and production application diversity with the same printer. Featuring a manual material feed, it is augmented with separate post-processing units available for cleaning, drying, and curing.
Fast Turnaround
Achieve same-day functional prototyping and low volume production with ultra-high speeds. Figure 4 Standalone offers quality, accuracy, and Six Sigma repeatability (Cpk > 2) with industrial-grade durability, service, and support. Figure 4 Standalone was designed for ease-of-use and includes file preparation and print management with 3D Systems 3D Sprint software.
Broad Range of Materials
Material Design Center has over 30 years of proven R&D experience and process development expertise. The broad and expanding range of materials available for Figure 4 Standalone addresses a wide variety of applications needs, for functional prototyping, direct production of end-use parts, molding and casting, and includes rigid and durable with thermoplastic-like behaviors, rubber-like, castable, heat resistant, and biocompatible capable materials.
