→ UltiMaker S8 Pro Bundle

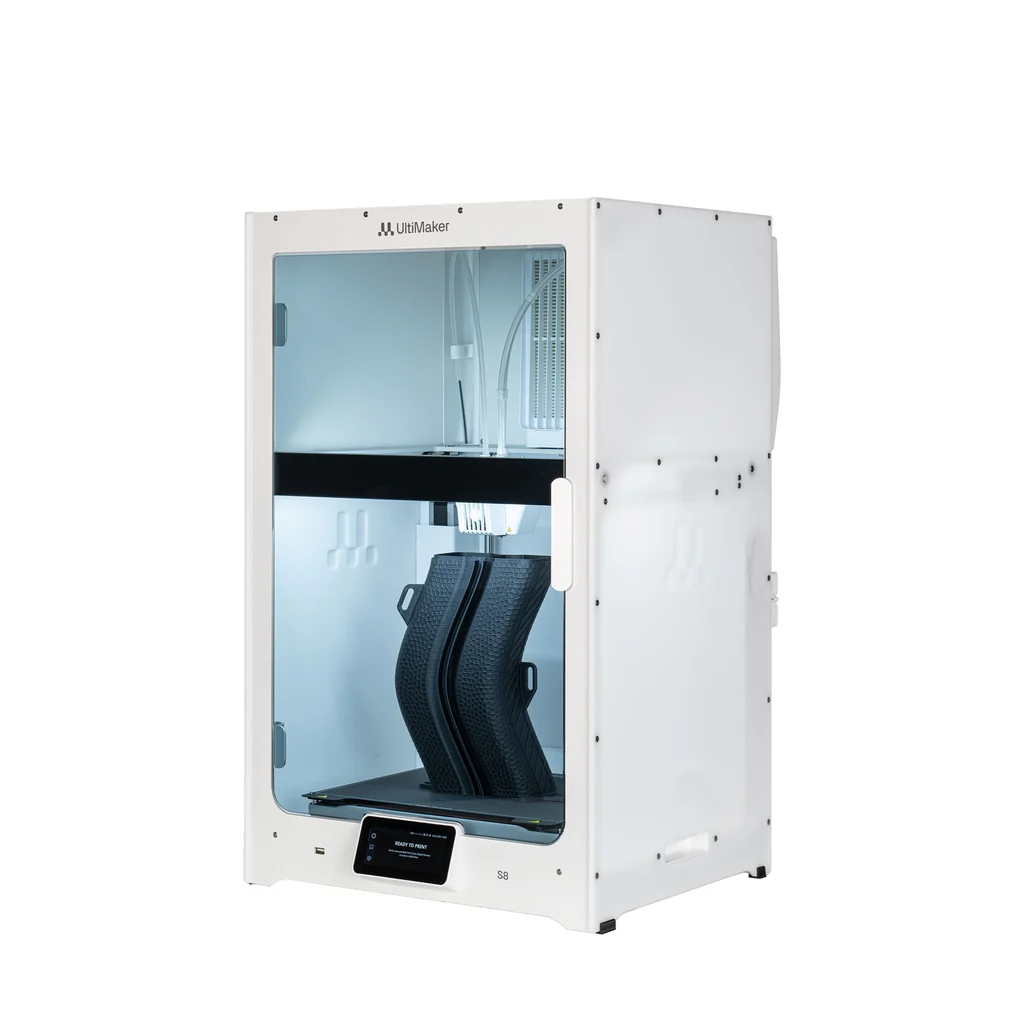

UltiMaker S8

Name: UltiMaker S8
SKU: 5509
Availability: InStock

$9,725.00

Up to 4x productivity and improved quality, powered by the new UltiMaker Cheetah motion planner.

Categories: FFF (Fused Filament Fabrication), Printers, Ultimaker

Spread the love

4x the productivity of its predecessor while also improving print quality to 0.15mm ± 0.15%.

The fastest desktop dual-material printer on the market

The dual extrusion design works together with software and firmware features to allow you to combine any 2 materials no matter how different they are, with minimal material waste and high reliability.

The only 3D printing software you will ever need

Digital Factory is designed to streamline every step of your 3D printing workflow, from slicing, to file management and even maintenance. Scalable for any team or enterprise, Digital Factory makes managing your 3D printing projects easier, faster, and more collaborative.

Build volume	330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
Assembled dimensions	W 495 x D 585 x H 800 mm (W 19.5 x D 23 x H 31.5 inches)
Print technology	Fused Deposition Modeling (FDM)
Compatible filament diameter	2.85 mm
Weight	29.1 kg (64.2 lbs)
Maximum power output	500 W
Dimensional accuracy	± 0.15 mm ± 0.15% feature nominal length*
Extrusion flow	Up to 35 mm3/s
XY speed, acceleration, jerk	Up to 500 mm/s, up to 50,000 mm/s², up to 100,000,000 mm/s³
Printer properties	Layer resolution: 0.25 mm nozzle: 150 – 60 micron 0.4 mm nozzle: 200 – 20 micron 0.6 mm nozzle: 300 – 20 micron 0.8 mm nozzle: 600 – 20 micron XYZ resolution: 6.9, 6.9, 2.5 micron Feeder type: Dual-geared feeder, reinforced for composite materials Display: 4.7-inch (11.9 cm) color touchscreen Print core replacement: Swappable print cores Print head: Dual extrusion print head with an auto-nozzle lifting system, swappable print cores, and flood detection. Nozzle diameters: 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm XY speed, acceleration, jerk: Up to 500 mm/s, up to 50.000 mm/s², up to 100.000.000 mm/s³ Extrusion flow: Up to 35 mm3/s System on module: ARM cortex quadcore at 1.8 GHz Real-time controller: 600 MHz Arm-cortex M7
Operation Parameters	Filter technology: Replaceable EPA filter Air extraction rate: 1 – 50 m³/h (35 m³/h nominal rate for most materials at 23 °C) Nozzle temperature: Up to 340 °C (644 °F) Nozzle heat-up time: < 2 minutes Operating sound: < 50 dBA Build plate leveling: Advanced active leveling with more accurate inductive sensors Build plate: PEI-coated flexible steel build plate Build plate heat-up time: < 5 minutes (from 20 to 60 °C) Operating ambient temperature: 15 – 32 °C (59 – 90 °F) Non-operating temperature: 0 – 32 °C (32 – 90 °F)
Ecosystem	Supplied free software: UltiMaker Cura – print preparation software UltiMaker Digital Factory – All-in-one cloud-based print, printer and user management software Supported OS: MacOS, Windows, and Linux Plugin integration: SolidWorks, Siemens NX, Autodesk Inventor Supported file types: UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP File transfter: Wi-Fi 2.4 & 5 GHz: IEEE 802.11a/b/g/n/ac LAN: Gigabit Ethernet USB: 2.0

UltiMaker S8

UltiMaker S8

The fastest desktop dual-material printer on the market

The only 3D printing software you will ever need
