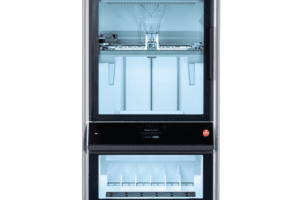

→ UltiMaker Factor 4

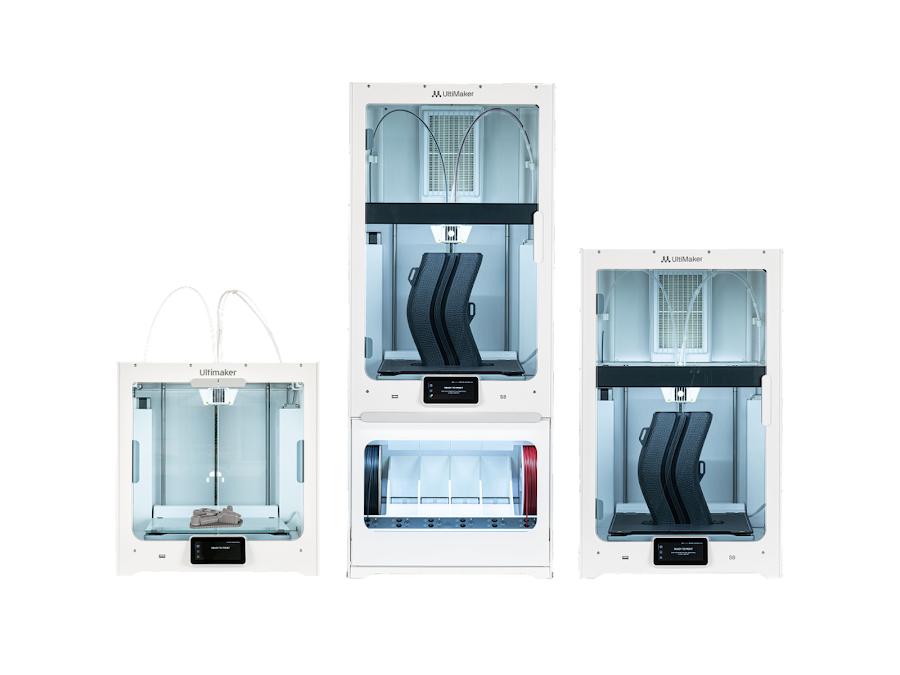

UltiMaker S8 Pro Bundle

Name: UltiMaker S8 Pro Bundle
SKU: 5510
Availability: InStock

$13,500.00

Ensure 24/7 uninterrupted printing with its Material Station, which automatically manages up to six materials for seamless transitions. Say goodbye to manual swaps and downtime—keep your production running smoothly, no matter the complexity of your prints.

Categories: FFF (Fused Filament Fabrication), Printers, Ultimaker

Spread the love

High-Speed 3D Printing with Smart, Automated Material Management.

Blazing Productivity

Up to 500 mm/s travel speed 50,000 mm/s² acceleration while also improving the quality of the print to 0.15mm ± 0.15%.

Automatic Material Handling

Designed to be left unattended, the Material Station allows the UltiMaker S8 to 3D print longer – day or night. Loading material into the Material Station takes seconds – not minutes. Simply open the door and drop the spool into a bay. During a print, any spool not in use can be switched out.

Hassle-Free Storage

Every spool is kept below 25% relative humidity, making it easy to realize more 3D printing applications with almost any combination of polymers and abrasive composites. Each of the Material Station’s material bays have NFC readers and reinforced prefeeders for integration with UltiMaker Cura and Digital Factory.

Build volume	330 x 240 x 300 mm (13 x 9.4 x 11.8 inches)
Assembled dimensions	W 495 x D 585 x H 800 mm (W 19.5 x D 23 x H 31.5 inches)
Print technology	Fused Deposition Modeling (FDM)
Compatible filament diameter	2.85 mm
Weight	29.1 kg (64.2 lbs)
Maximum power output	500 W
Dimensional accuracy	± 0.15 mm ± 0.15% feature nominal length*
Extrusion flow	Up to 35 mm3/s
XY speed, acceleration, jerk	Up to 500 mm/s, up to 50.000 mm/s2, up to 100.000.000 mm/s3
Printer properties	Layer resolution: 0.25 mm nozzle: 150 – 60 micron 0.4 mm nozzle: 200 – 20 micron 0.6 mm nozzle: 300 – 20 micron 0.8 mm nozzle: 600 – 20 micron XYZ resolution: 6.9, 6.9, 2.5 micron Feeder type: Dual-geared feeder, reinforced for composite materials Display: 4.7-inch (11.9 cm) color touchscreen Print core replacement: Swappable print cores Print head: Dual extrusion print head with an auto-nozzle lifting system, swappable print cores, and flood detection. Nozzle diameters: 0.25 mm, 0.4 mm, 0.6 mm, 0.8 mm XY speed, acceleration, jerk: Up to 500 mm/s, up to 50.000 mm/s2, up to 100.000.000 mm/s³ Extrusion flow: Up to 35 mm3/s System on module: ARM cortex quadcore at 1.8 GHz Real-time controller: 600 MHz Arm-cortex M7
Operation parameters	Filter technology: Replaceable EPA filter Air extraction rate: 1 – 50 m³/h (35 m³/h nominal rate for most materials at 23 °C) Nozzle temperature: Up to 340 °C (644 °F) Nozzle heat-up time: < 2 minutes Operating sound: < 50 dBA Build plate leveling: Advanced active leveling with more accurate inductive sensors Build plate: PEI-coated flexible steel build plate Build plate heat-up time: < 5 minutes (from 20 to 60 °C) Operating ambient temperature: 15 – 32 °C (59 – 90 °F) Non-operating temperature: 0 – 32 °C (32 – 90 °F)
Ecosystem	Supplied free software: UltiMaker Cura – print preparation software UltiMaker Digital Factory – All-in-one cloud-based print, printer and user management software Supported OS: MacOS, Windows, and Linux Plugin integration: SolidWorks, Siemens NX, Autodesk Inventor Supported file types: UltiMaker Cura: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG Printable formats: G, GCODE, GCODE.gz, UFP File transfter: Wi-Fi 2.4 & 5 GHz: IEEE 802.11a/b/g/n/ac LAN: Gigabit Ethernet USB: 2.0

UltiMaker S8 Pro Bundle

UltiMaker S8 Pro Bundle

Blazing Productivity

Automatic Material Handling

Hassle-Free Storage

Related products

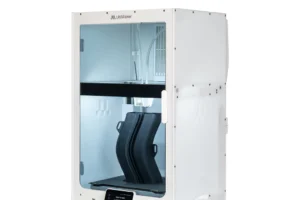

UltiMaker S8
